How EV Batteries Store and Release Energy



The most important part of any electric vehicle (EV) is the battery system.Understanding how these batteries store and deliver energy is fundamental to grasping EV technology. Electrochemical principles allow EV batteries to store energy and then release it to power the electric motor. This process involves the movement of ions between two electrodes, generating the electricity that propels the vehicle.

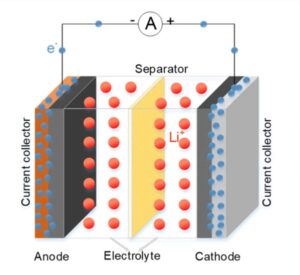

Structure of EV Batteries

Structure of EV battries

Most EVs use lithium-ion batteries, which consist of several key components that work together to store and discharge energy:

  • Anode (Negative Electrode): During the charging process, the anode, which is usually composed of graphite, stores lithium ions.
  • Cathode (Positive Electrode): Composed of metal oxides such as nickel, cobalt, or manganese, the cathode receives lithium ions during discharge.
  • Electrolyte: A liquid or gel-like substance called an electrolyte aids in the movement of lithium ions from the anode to the cathode.
  • Separator: A permeable membrane that permits ion movement but blocks direct contact between the anode and cathode.



Energy Storage: The Charging Process

Energy Storage of EV Batteries

When an EV is connected to a charging source, electrical energy initiates a series of chemical reactions within the battery:

  1. Ion Movement: The external electric current causes the lithium ions to flow from the cathode to the anode across the electrolyte.
  2. Electron Flow: Simultaneously, electrons travel through the external circuit (the charger) to maintain charge balance, creating an electric current.
  3. Energy Storage: As lithium ions accumulate in the anode, energy is stored in the form of chemical potential until needed.



Energy Release: The Discharging Process

Energy Release The Discharging Process

The electric motor is powered by the stored energy when the vehicle is in motion:

  1. Ion Reversal: Through the electrolyte, lithium ions return from the anode to the cathode.
  2. Electrical Output: Electrons flow through the external circuit, providing power to the vehicle’s motor, electronics, and auxiliary systems.
  3. Energy Conversion: The vehicle is propelled by electrical energy that is created from the chemical energy that has been stored.

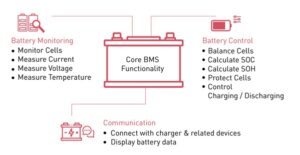

Role of the Battery Management System (BMS)

Role of the Battery Management System (BMS)

For EV batteries to operate safely and effectively, a Battery Management System (BMS) is required. It monitors and regulates various battery functions:

  • Cell Balancing: Ensures even charging and discharging across thousands of individual cells to maximize lifespan and performance.
  • Thermal Monitoring: Tracks battery temperature and activates cooling systems to prevent overheating.
  • Overcharge Protection: Stops charging once the battery reaches full capacity to prevent damage and ensure safety.



Battery Efficiency and Charging Cycles

Battery Efficiency and Charging Cycles

  • Charging Cycles: One complete charge and discharge is referred to as a charge cycle. Most EV batteries are rated for several thousand cycles before significant capacity loss.
  • Energy Efficiency: Lithium-ion batteries are highly efficient, with 80–90% of stored energy being converted into usable power.
  • Regenerative Braking: Many EVs utilize regenerative braking to convert kinetic energy back into stored electrical energy during deceleration, further improving efficiency.



Temperature Effects on Battery Performance

Temperature has a big influence on EV battery performance:

Temperature Effects on Battery Performance

  • Cold Weather: Lower temperatures can reduce ion mobility, resulting in slower charging and decreased range.
  • High Heat: While heat can temporarily enhance performance, sustained high temperatures degrade battery health and increase the risk of overheating.
  • Thermal Management: EVs are equipped with active thermal management systems to maintain optimal battery temperature and prolong service life.



Future Innovations in Energy Storage

As battery technology continues to evolve, researchers are focused on enhancing capacity, safety, and charging speed:

  • Solid-State Batteries: Longer lifespans, increased safety, and higher energy density are all promised by these next-generation batteries.
  • Ultra-Fast Charging: Breakthroughs in charging technology aim to significantly reduce charging times, making EVs more practical for everyday use.



Conclusion

The ability of EV batteries to store and release energy hinges on complex electrochemical processes and sophisticated management systems. These systems not only enable efficient vehicle operation but also support the broader goal of sustainable transportation. As battery technology continues to improve, the performance, convenience, and accessibility of electric vehicles will only increase.
